Storage Silo

Our silos are divided into dry ones and wet ones. And the bottoms are designed to be flat or inclined, so that the material in it falls by gravity or slides down by the inclined plane. The discharging system is composed of broken arch sliding frame, driving device, hydraulic power station, discharging screw, discharging valve and control system to ensure uniform discharging.

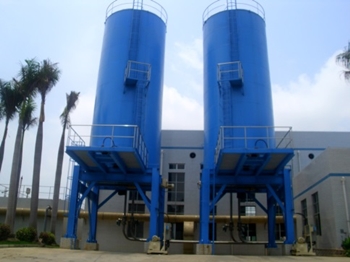

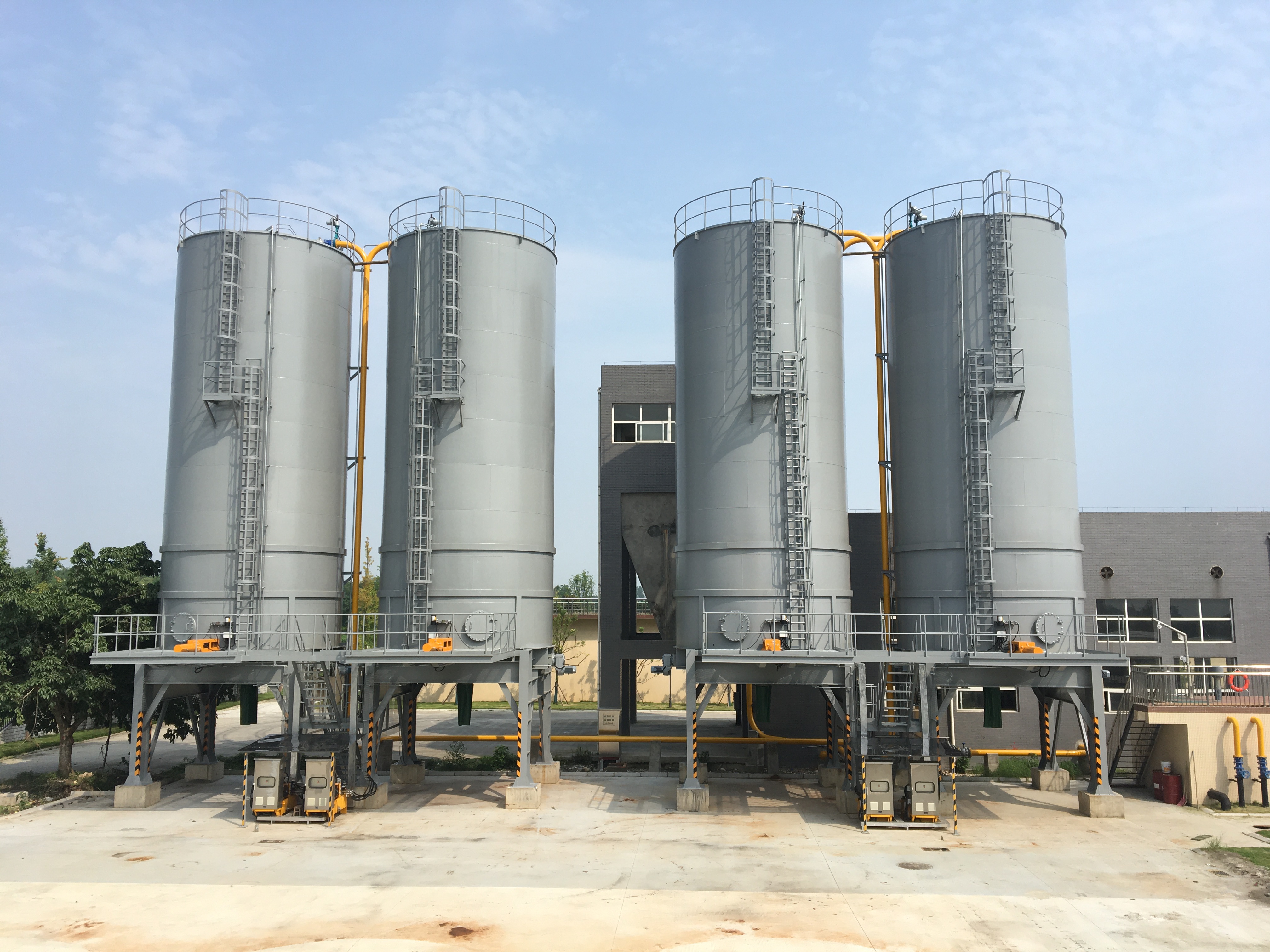

Moist-material Silo

Applications:It is suitable for centrifuge and belt machine to store sludge with good fluidity after dewatering.

CharacteristicsThe silo is completely closed with no odor overflow. Use special arch breaking technology match hydraulic drive system, which will wear less and be more convenient to maintain. Equipped with hydraulic energy storage system to prevent materials from leaking while power off. The realization of the the amount of mud accurate control is by means of ultrasonic level meter. With both site and remote control system, you can operate easily.


Equipment Parameter

Model Type

Effective Volume(m3)

Discharge Capacity(m3/h)

Size(m)

Installed Power(kW)

ZZCLC-50

50

30

φ4.3×4.0

16

ZZCLC-100

100

30

φ4.3×8.0

16

ZZCLC-150

150

30

φ5.0×9.0

17.5

ZZCLC-200

200

30

φ5.0×12.0

17.5

ZZCLC-300

300

30

φ6.0×11.5

19.5

ZZCLC-400

400

30

φ6.0×16.0

19.5

PS: For other specifications, please contact our technical engineers. We can customize for you according to site conditions.


Dry-material Silo

Applications:Used for storage, transfer or loading of dry materials or fly ash materials after sludge or kitchen waste incineration.

CharacteristicsThe silo is designed to be vertebral or italic, to use the space extremely. Use Pneumatic vibration or hydraulic drive, vulnerable parts are all outside the body that will be easy to repair and maintenance.

Equipment Parameter

Model Type

Effective Volume(m3)

Discharge Capacity(m3/h)

Size(m)

Installed Power(kW)

ZZGLC-50

50

30

5×4×(2.89+1.61)

16

ZZGLC-100

100

30

6×4.6×(2.54+3.46)

17.5

ZZGLC-150

150

30

6×4.6×(4.14+3.46)

17.5

ZZGLC-200

200

30

7×4.6×(4.66+4.04)

17.5

PS: For other specifications, please contact our technical engineers. We can customize for you according to site conditions.
