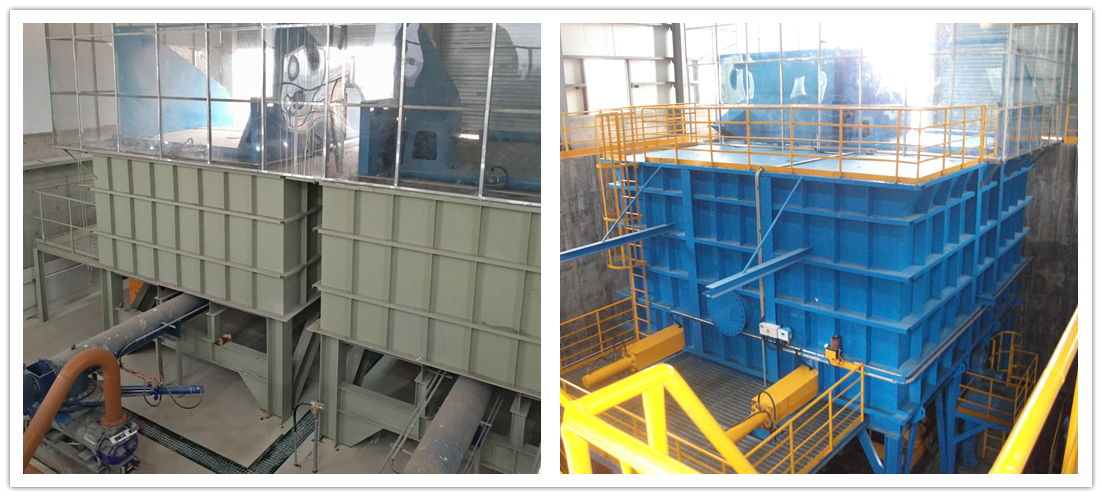

Receiving Silo

Process characteristics

(1)The silo body can be steel structure or concrete structure, and the cover usually equipped with electric/hydraulic opening device which makes it opened easily.

(2)The bottom is of plane to improve the space efficiency, leaving no dead space.

(3)The body is designed to be rectangle that can easily receive material. The conveying equipment installed at the bottom can send the material to subsequent processes.

(4)The silo is equipped with special protection device to prevent material leakage in the silo after power distribution.


Process flow

Receive and store toxic and harmful materials such as sludge and kitchen waste.

Application field

Model Type

Effective Volume(m3)

Discharge Capacity(m3/h)

Size(m)

Installed Power(kW)

ZZJLC-50

50

30

3.5×3.75×4.0

16

ZZJLC-100

100

30

3.5×7.5×4.0

19.5

ZZJLC-150

150

30

7.0×7.5×3.0

19.5

ZZJLC-200

200

30

7.5×7.5×4.0

19.5
